KARUSSELL KARUSSELL bike rack with 12 spaces for vertical bike parking

KARUSSELL bike rack with 12 spaces for vertical bike parking

Perfect for space-saving parking! The KARUSSELL makes vertical bike parking in the tightest corners child’s play – you’ll get the hang of it straight away!

The KARUSSELL bike rack makes optimal use of the available space, and different mounting systems adapt it to each location. Its rotating body is based on a modular concept, which makes installation easier. A bike rack with brains!

Parking a bike is child’s play – from kids’ bikes to mountain bikes – and 12 bikes fit in the KARUSSELL.

The KARUSSELL rotating rack is available in three versions: GAMMA, WEGA, LIFT

Screws/wall plugs for final installation are NOT included – only those for assembling the bike rack itself.

* Bicycles are shown for illustration only and are not included.

Product description

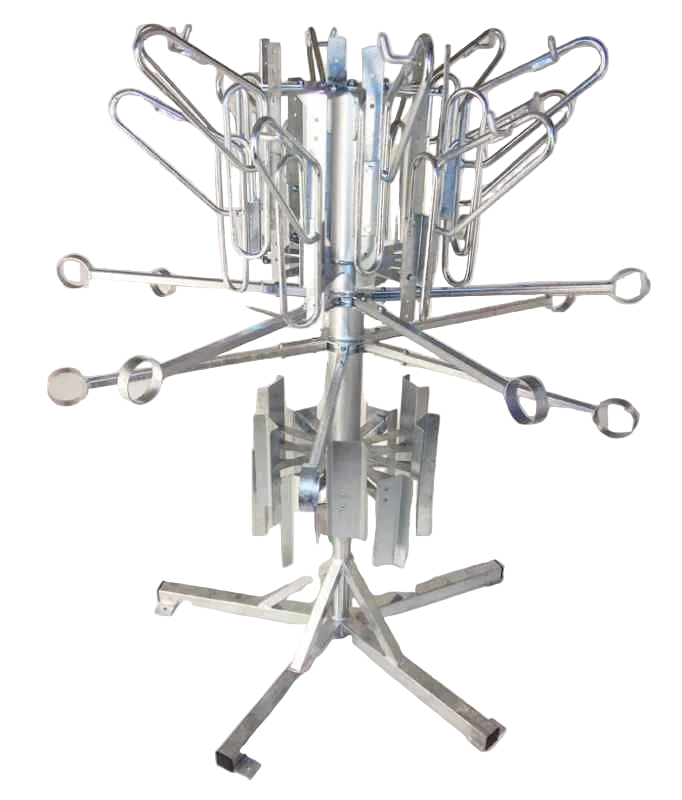

GAMMA

Its modular design makes the GAMMA carousel easy to install. The GAMMA was originally developed for Deutsche Bahn (DB), which needed a rack to hold bikes securely when carried in railway carriages – the result is the GAMMA bike rack!

The GAMMA really comes into its own in our carousel. Fitted with 12 GAMMA holders, the rotating frame makes every single space easy to use, even where room is tight!

WEGA

Our WEGA bike holder provides ideal conditions for vertical parking. But in practice a classic rack alone is sometimes not enough. With our rotating KARUSSELL frame and the WEGA holders attached to it, we offer 12(!) bike parking positions in a small space.

LIFT

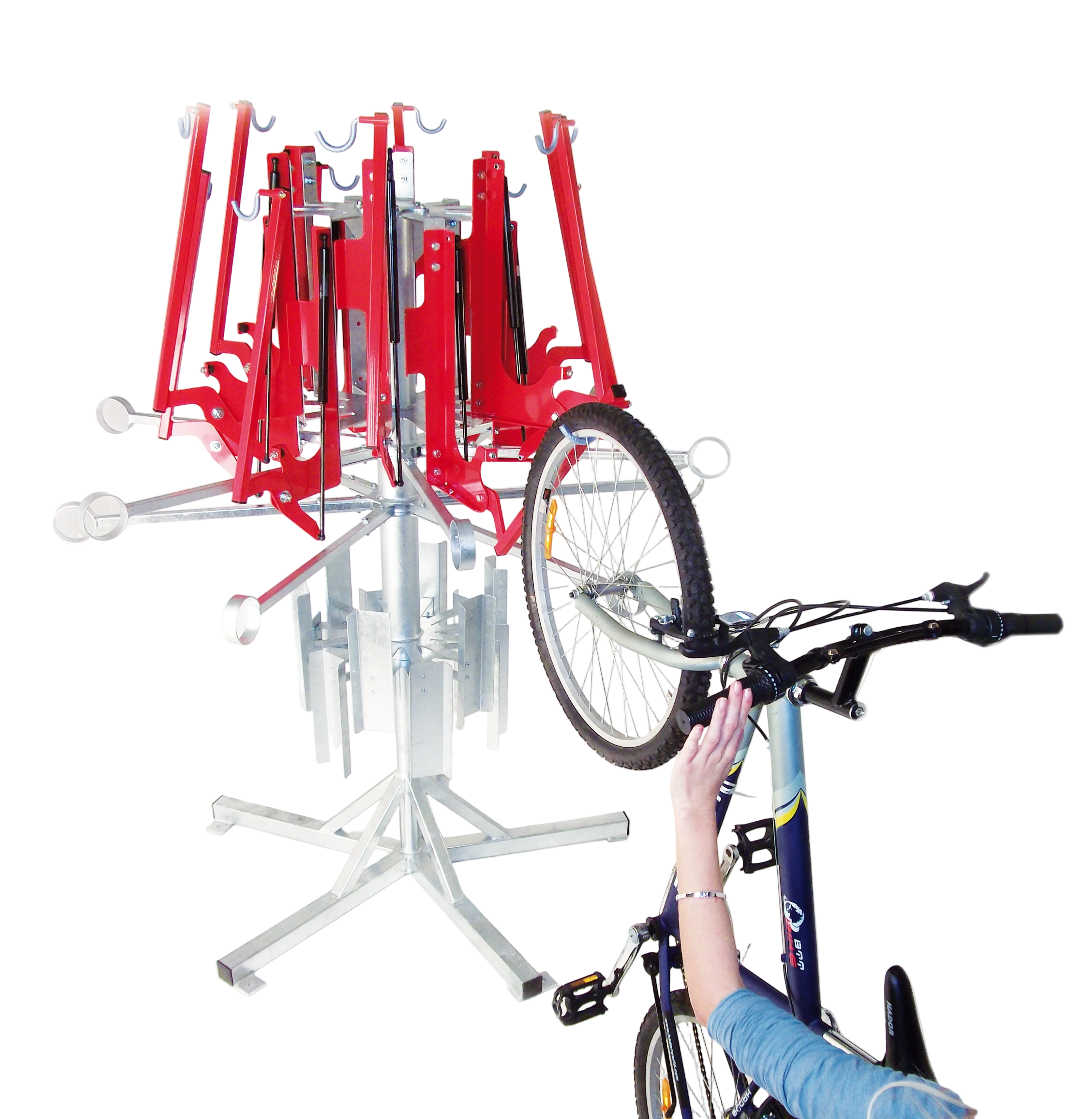

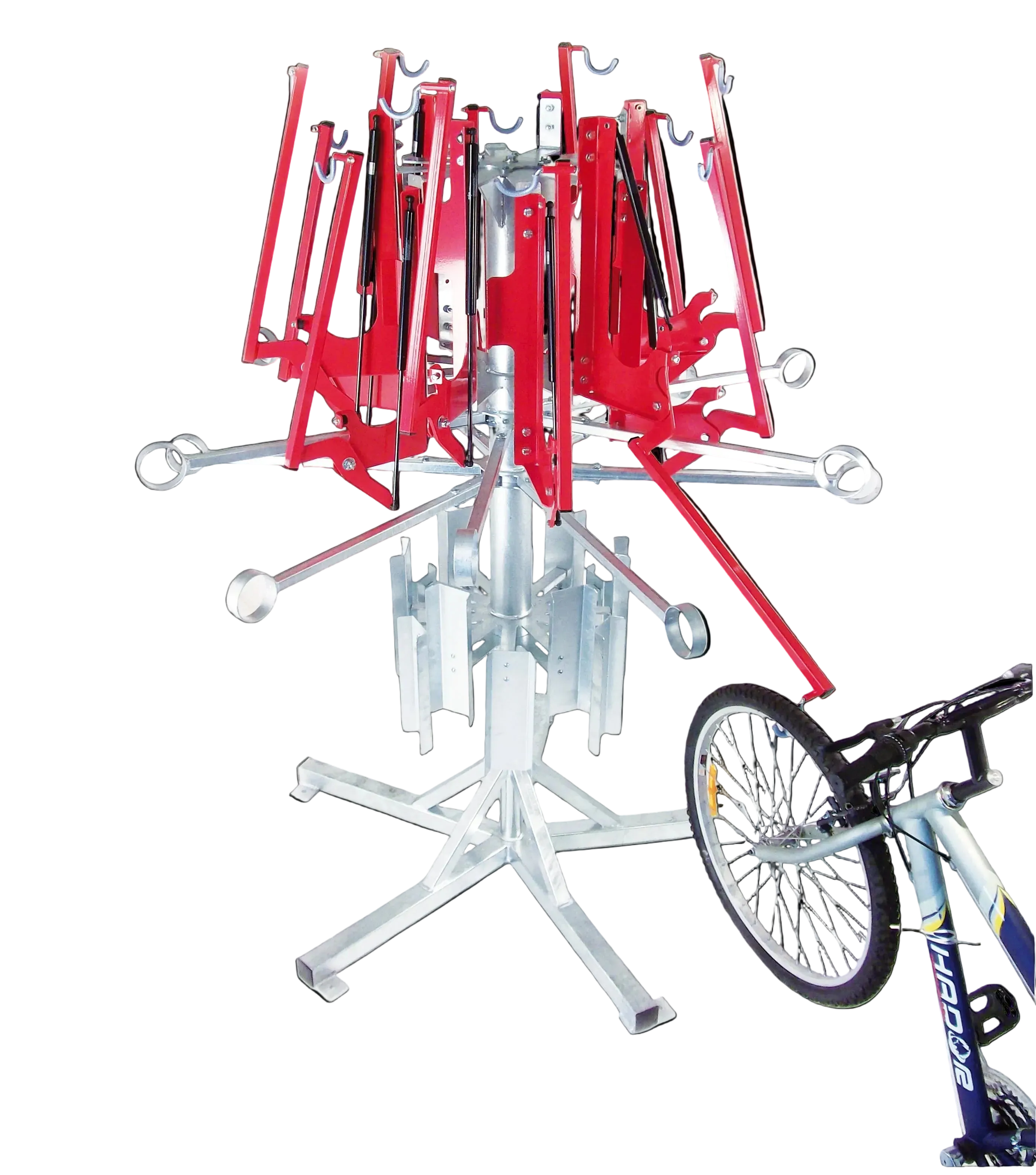

Lifting a bike into a vertical position could not be easier or more comfortable than with a gas-spring-assisted holder! Integrating the LIFT into our rotating KARUSSELL creates an ideal bike parking system where space is tight. Theft protection is not neglected either: with the additional locking eyelet, the hung bike can be secured by a wheel or the frame with a standard D-lock or cable lock.

The LIFT comes in red as standard, similar to RAL 3020 (traffic red). Its integrated gas spring works reliably and provides the comfort. The LIFT treats the rim gently: heat-shrink tubing over the hook provides a buffer between the metal of the rim and the metal of the holder.

• The rotating construction gives you 12 parking positions in the smallest space.
• Floor mounting; the rack is supplied with its fastening elements (see note on screws/wall plugs).
• The KARUSSELL bike rack fits all common bicycles.
• The KARUSSELL has many applications: residential complexes, medical practices and hospitals, leisure facilities, office and administrative buildings, schools and universities, stations and stops, hotels and restaurants, cultural venues


Planning aid

Mounting options: floor (bolted down, set in concrete)

Mounting options

The KARUSSELL bike rack can be fastened and mounted by:

• Floor mounting (bolted down or set in concrete)

Technical data

• Technical drawings

• Technical drawings

• Technical drawings

All KARUSSELL models:

• Bike access: vertical and rotating
• Finish: hot-dip galvanised steel, or hot-dip galvanised and powder-coated
• Floor anchoring: bolted down or set in concrete
• Weight: 153-178 kg per unit
• Mounting height: 2098 mm
• Colour: galvanised, therefore silver-grey (LIFT: RAL 3020)
• Construction: steel structure, round-tube hoops

Reference installations

• Residential complexes
• Medical practices and hospitals
• Leisure facilities
• Office and administrative buildings
• Schools and universities
• Stations and stops
• Hotels and restaurants
• Cultural venues
